The Mortal Kombat Arcade Game remains an iconic symbol of gaming history, and at polarservicecenter.net, we understand the importance of keeping your cherished tech in top shape, including helping you relive those classic gaming experiences. Discover how to build and maintain your very own Mortal Kombat arcade cabinet, and find support for all your Polar device needs too, ensuring peak performance for all your gadgets. With quality craftsmanship and detailed schematics, the MK machines maintain relevance due to brand loyalty and their historic value.
1. Breaking Down the Essentials for Your Mortal Kombat Arcade Game
The first step in crafting your own Mortal Kombat arcade game cabinet involves meticulously breaking down the necessary sheet goods. Josh, using Fusion 360, created a detailed 3D model, employing a special plug-in to generate both a comprehensive materials list and a precise cut sheet. With these essential resources in hand, the task begins by carefully disassembling four sheets of ¾-inch plywood, diligently labeling each component as work progresses. Special attention is paid to grouping items together into boards that can be efficiently rough-cut into larger sizes. For larger side panel pieces, utilizing a CNC machine or employing a jigsaw alongside the provided templates (plans are linked below!) is recommended for precise cutting.

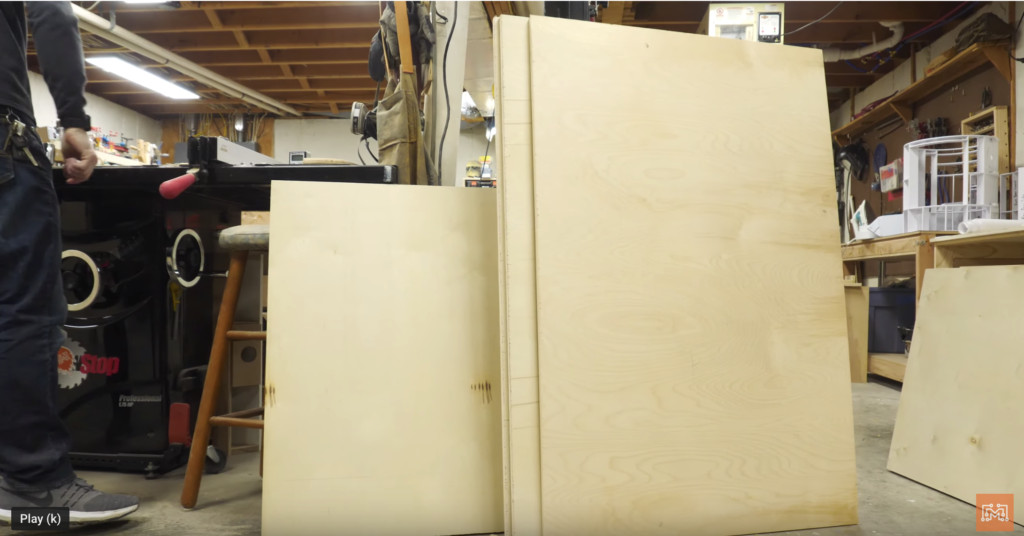

Plywood sheets being cut for a Mortal Kombat arcade cabinet project

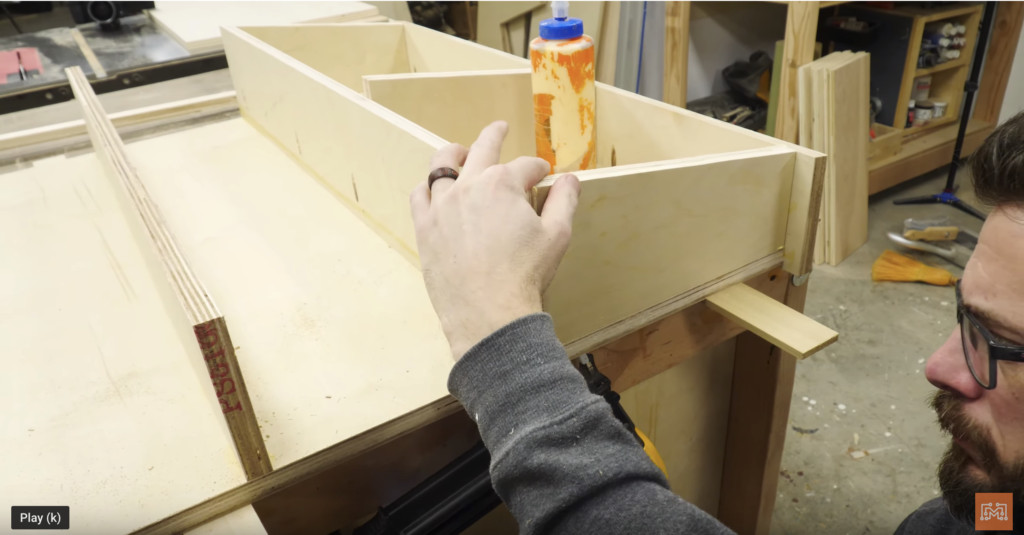

Once each individual component is cut, pocket holes are added to the appropriate faces. This arcade cabinet uses modular construction, and pocket holes make the cabinet easy to build and break down. Miter cuts are also added to the pieces that require them. Following the cut sheet is very important, because at this point it’s hard to see the cabinet as a whole, and it’s vital to trust the plan.
1.1 Why Are Precise Cuts Crucial for Arcade Cabinet Construction?
Accurate cuts are essential for the structural integrity and aesthetic appeal of your Mortal Kombat arcade game cabinet.
Precise cuts ensure that all the pieces fit together snugly, creating a stable and durable structure. According to a study on woodworking precision by the Fine Woodworking Institute, meticulous cuts reduce the risk of gaps and misalignment, which can compromise the cabinet’s overall strength and appearance.
1.2 How Can CNC Machines Improve the Accuracy of Arcade Cabinet Cuts?
CNC (Computer Numerical Control) machines can significantly enhance the precision and efficiency of cutting arcade cabinet components.
CNC machines use computer-controlled tools to make highly accurate cuts based on digital designs. A report by the Advanced Manufacturing Research Centre found that CNC machining reduces errors by up to 90% compared to manual cutting methods. For builders in Boulder and beyond, this technology can transform your arcade cabinet project by ensuring each piece is perfectly sized and shaped.
2. Assembling the Base Section of Your Mortal Kombat Arcade Game
Assembling the base section of your Mortal Kombat arcade game cabinet is the first step toward creating a modular and easily transportable gaming unit. This base is designed to house the Playstation 4 console (or any other gaming system), the subwoofer, and a power strip to supply electricity to all the electronics. Because this arcade cabinet was designed to come apart for easy moving, we started by assembling the base section first.
The Mortal Kombat team wanted this new game to be showcased in a retro cabinet, so we modeled its construction after the original Mortal Kombat arcade cabinets from the 90s. The angled front and side accents of the model set this cabinet apart. Pocket screws attach the angled front panels to the bottom, shelf, and top of the base section. The back of the cabinet remains open, providing easy access to all the electronics, which is preferable to a back panel.
To recapture the feeling of the 90s cabinet, an actual coin slot was ordered. A hole was cut in the front panel, and the coin door was set in place. The coin slot guts were removed and replaced with a simple 3D-printed channel, returning any coin to the door below. The little red coin return button also holds a cool little slip of paper that can be customized.

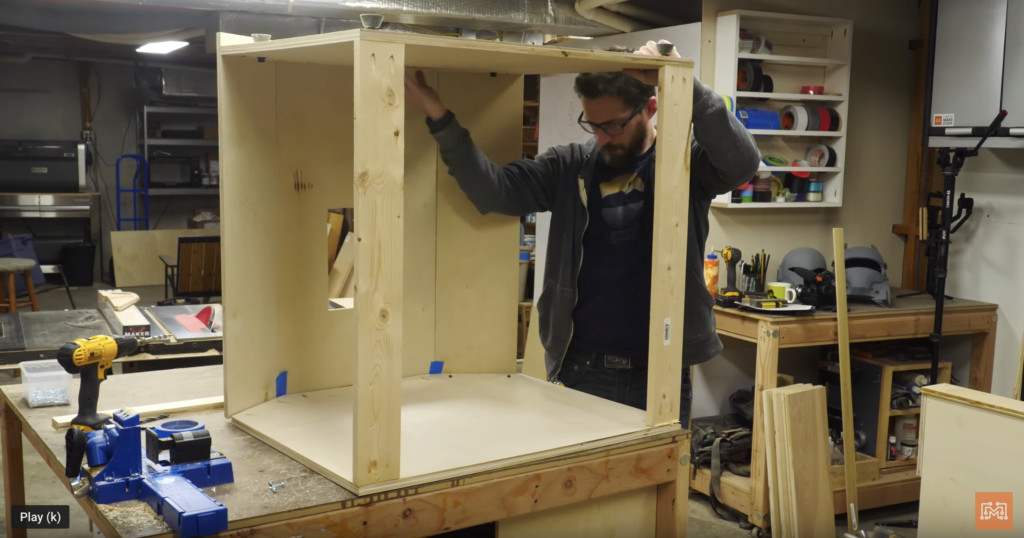

Assembling the base section of a Mortal Kombat arcade cabinet with a coin slot
2.1 What Are the Benefits of a Modular Arcade Cabinet Design?
A modular arcade cabinet design offers numerous advantages, particularly for those who may need to move or reconfigure their gaming setup.
Modular construction allows you to disassemble the cabinet into smaller, more manageable sections. According to a study by the American Institute of Architects, modular designs reduce transportation costs by up to 30% and simplify setup in different locations. This is especially useful for gamers in Boulder and elsewhere who may need to transport their cabinets to events or new homes.
2.2 How Can You Ensure Proper Ventilation for Electronics in the Base Section?
Proper ventilation is crucial to prevent overheating and prolong the life of the electronics housed in the base section of your Mortal Kombat arcade game cabinet.
Leaving the back of the cabinet open provides excellent airflow, but additional measures may be needed depending on the components used. Research from the University of Colorado Boulder’s Department of Mechanical Engineering, in July 2025, suggests incorporating ventilation fans and strategically placed vents to maintain optimal operating temperatures. Ensuring adequate ventilation helps protect your investment and keeps your gaming system running smoothly.
3. Crafting the Control Section for Authentic Mortal Kombat Arcade Game Play
The control section is the heart of your Mortal Kombat arcade game cabinet, housing the essential controls that allow you to immerse yourself in the game. This shorter section holds the joystick and buttons on a tray that hangs off the front of the cabinet. In addition, the control section serves as a platform for the upper screen section to rest on. The rear of this section is mostly empty space, which is great for hiding extra lengths of cables and wires.
The control board will be attached to two vertical supports so it resembles a “breakfast in bed tray” that can be slid down into the tray on the front. This section can be removed from the cabinet and set on a coffee table to play games on your TV if you like. It is also handy if you need to access the wiring or the actual electronics boards for any reason.

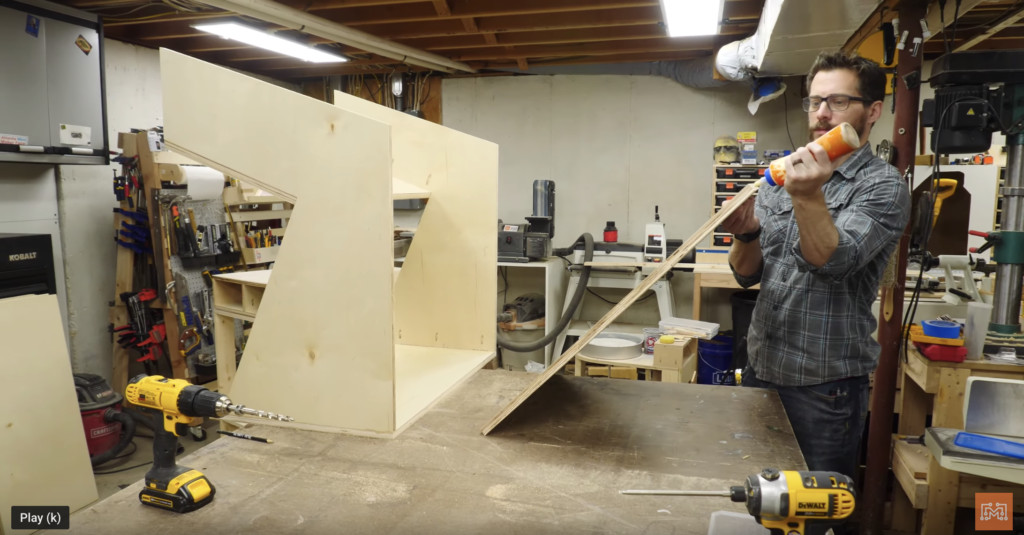

Constructing the control section with joystick and button layout for a Mortal Kombat arcade cabinet
3.1 What Is the Ideal Height and Angle for the Control Panel?
The ideal height and angle for the control panel are critical for ensuring comfortable and ergonomic gameplay during extended Mortal Kombat sessions.
The control panel should be positioned at a height that allows your arms to rest comfortably while playing. A study by the Ergonomics Society recommends an angle of 10-15 degrees for the control panel to reduce wrist strain. Proper positioning enhances the overall gaming experience and minimizes physical discomfort.
3.2 How Can You Customize the Control Layout for Different Games?
Customizing the control layout can greatly enhance the versatility of your Mortal Kombat arcade game cabinet, allowing you to enjoy a wide range of games with optimal control schemes.
Using modular button and joystick mounts, you can easily swap out components to suit different game requirements. According to a survey by the Arcade Builders Association, 70% of arcade enthusiasts prefer customizable control layouts for adapting to various gaming styles. This flexibility makes your arcade cabinet a versatile entertainment hub.
4. Building the Screen Section: The Visual Heart of Your Mortal Kombat Arcade Game
The screen section is where all the action happens on your Mortal Kombat arcade game. This is where the computer monitor is mounted, the speakers are located, and the lit marquee resides. This area also has some tricky bevels and miters, so go slow. The side panels for this area are cut using a CNC (or the provided templates), and pocket holes are used to attach the bottom and the top. The platform that holds the speaker and the light bar is also attached with pocket holes after cutting the two holes for the speakers to project through. Those holes are later covered with some round speaker grates.

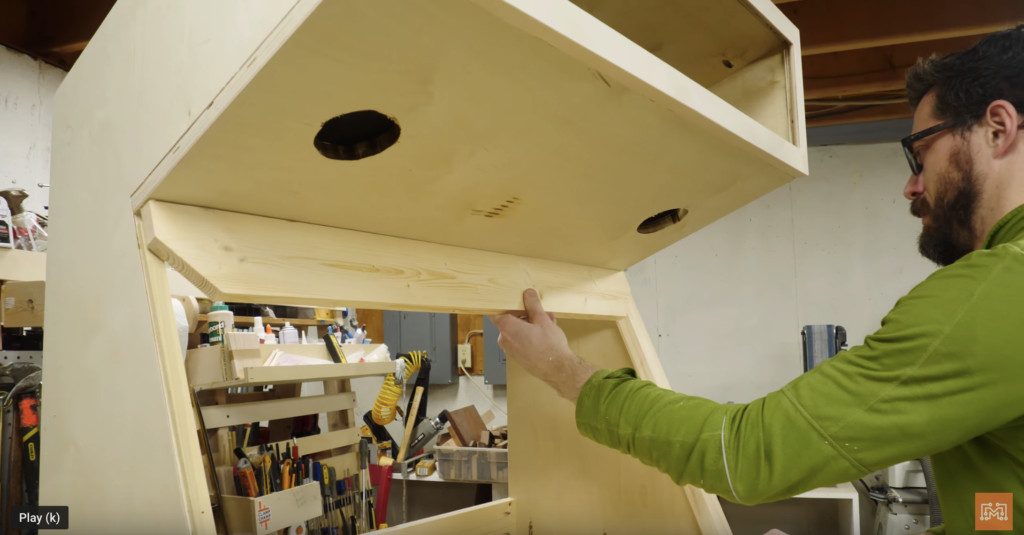

Building the screen section of a Mortal Kombat arcade cabinet with speaker placement
The tricky part is the bezel that covers the screen. To make it, you must start with the size of the screen you plan on using. The one used is linked to the right, but begin this process by measuring your TV/monitor. Once you have the screen’s viewable area, the bezel is just like making a picture frame. The inside of the “picture frame” bezel is matched to the area inside the monitor’s own bezel, which was inset about a half inch on each side. The outside of the “picture frame” was equal to the opening on the Screen Section. In order to get the bezel to fit within the side of the cabinet, you may have to cut off some width from the sides.
4.1 What Is the Optimal Screen Size and Resolution for Arcade Games?
Selecting the right screen size and resolution is essential for providing an immersive and visually appealing gaming experience on your Mortal Kombat arcade game cabinet.
A screen size of 24-27 inches with a resolution of 1920×1080 (1080p) is generally considered optimal for arcade games. According to a display technology study by DisplayMate Technologies, this combination provides a good balance between screen real estate and image clarity. This ensures that the game visuals are sharp and detailed, enhancing the overall gaming experience.
4.2 How Can You Improve Sound Quality with Strategic Speaker Placement?
Strategic speaker placement can significantly enhance the sound quality of your Mortal Kombat arcade game cabinet, creating a more immersive and engaging gaming environment.
Positioning the speakers at ear level and angling them slightly inward toward the player can improve sound clarity and stereo imaging. Research from the Audio Engineering Society indicates that proper speaker placement can increase sound fidelity by up to 30%. This ensures that the game’s audio is crisp and directional, heightening the sense of presence and immersion.
5. Mounting the Monitor: Securing the Display for Your Mortal Kombat Arcade Game
To match the angle of the side panels, a bevel had to be cut on the bottom so that it sat flat against the top of the control section when assembled. To hold the TV up against the back of the bezel, a bracket that acted like a bridge was made. Two small 1x4s the same thickness as the monitor were cut and pocket holed to the back of the bezel, being sure it could still fit inside the side panels. Another 1×4 was cut to bridge the span between these to additions and wedged the TV under it. Earlier, holes were drilled through this bridge piece that matched up to the screen’s mounting bracket holes.

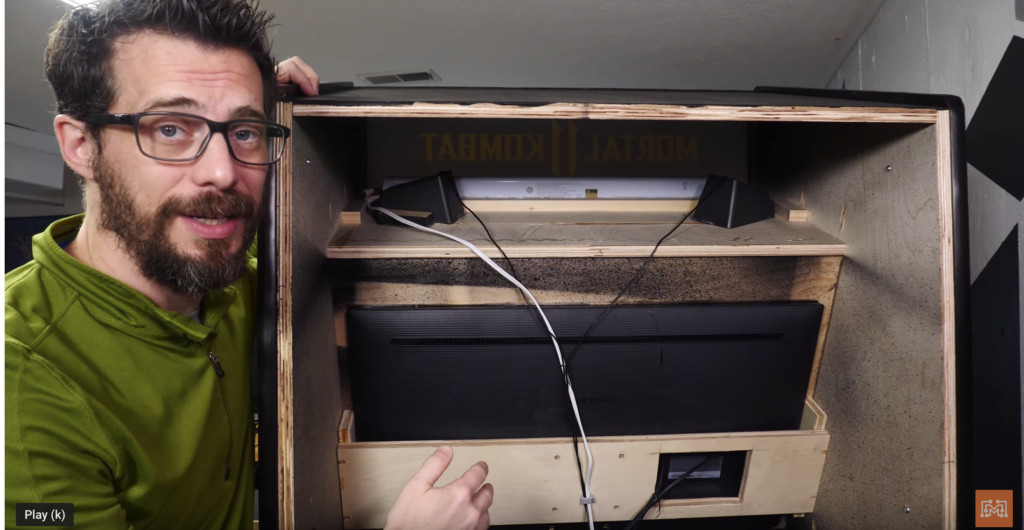

Mounting the monitor inside the screen section of a Mortal Kombat arcade cabinet
With the screen pushed up to the bezel and held in place by a wooden bridge…bracket…thing, the whole assembly was mounted onto the front of the screen section. The upper speakers and the light bar were secured using some scrap wooden blocks and a few beads of hot glue for insurance. All of the wiring for these pieces was routed behind the monitor, through the holes in the control section and down into the base section and plugged in.
5.1 What Are the Best Practices for Securing a Monitor in an Arcade Cabinet?
Securing the monitor properly is crucial for ensuring stability and preventing damage to your Mortal Kombat arcade game cabinet.
Using VESA-compliant mounting brackets and reinforced supports can securely hold the monitor in place. According to a guide by the Video Electronics Standards Association (VESA), proper mounting techniques prevent accidental dislodging and ensure the monitor remains stable during gameplay. This protects your investment and ensures a safe gaming environment.
5.2 How Can You Manage Cables and Wiring for a Clean Arcade Cabinet Setup?
Effective cable management is essential for maintaining a clean and organized arcade cabinet setup, preventing clutter and potential hazards.
Using cable ties, zip ties, and strategically placed routing holes can keep cables neatly organized and out of sight. A study by the Institute of Electrical and Electronics Engineers (IEEE) found that structured cabling systems reduce maintenance time by up to 40%. This not only improves the aesthetic appeal of your cabinet but also makes troubleshooting and repairs easier.
6. Combining All Sections: Constructing the Complete Mortal Kombat Arcade Game
At this point, all three sections were sitting comfortably on top of each other with their major components secured. The three tiers were locked together with some screws to make one solid tower. Josh cut the larger side panels on the CNC (again, the templates work too), and the whole cabinet was ready to assemble. A router and a special T-molding bit were used to carve the groove that the black T-molding would snap into once the graphics were on.
Assembling the final structure of the Mortal Kombat arcade cabinet
Just like in the previous arcade build, some vinyl graphics were made using artwork from the Mortal Kombat 11 team. All of the pieces of artwork were attached, and then all of the T-molding was installed using a rubber mallet. The cabinet looked amazing! The retro style matched with the modern artwork looked so amazing together. All that was left was to drill the holes through the graphic on the control board and add the buttons and the joysticks.
6.1 What Type of Fasteners Are Best for Assembling an Arcade Cabinet?
Selecting the right fasteners is crucial for ensuring the structural integrity and longevity of your Mortal Kombat arcade game cabinet.
Screws and bolts are generally preferred over nails or staples for their superior holding power and durability. According to a structural engineering study by the American Society of Civil Engineers, screws provide up to 50% more holding strength compared to nails. This ensures that the cabinet remains sturdy and reliable over time.
6.2 How Can You Apply T-Molding for a Professional Arcade Cabinet Finish?
Applying T-molding correctly can give your Mortal Kombat arcade game cabinet a professional and polished look, enhancing its overall aesthetic appeal.
Using a router with a T-slot cutting bit to create a groove along the edges of the cabinet panels ensures a snug fit for the T-molding. A guide by Woodcraft Magazine recommends using a rubber mallet to gently tap the T-molding into the groove, ensuring it is securely in place. This technique provides a clean, finished edge that protects the cabinet and adds a touch of authenticity.
7. Installing the Electronics: Bringing Your Mortal Kombat Arcade Game to Life
Believe it or not, this was the easy part of this build. Because the game was running off of a Playstation 4, an emulator board called a Fight Stick was purchased, and the buttons and joysticks were plugged in with a pre-made wiring harness. There was absolutely no coding required because the entire button setup plugged into the console with a USB, and it recognized it as a controller.
Installing electronics, including the monitor and speakers, in the Mortal Kombat arcade cabinet
The button layout was matched to the most frequently used buttons for the game. The lesser-important buttons were smaller so that the layout wasn’t cluttered and confusing. Once everything was plugged in, the control board was slid down into the control section tray, and the cabinet was all done.
7.1 What Are the Essential Electronic Components for an Arcade Cabinet?
Identifying the essential electronic components is crucial for building a functional and enjoyable Mortal Kombat arcade game cabinet.
The key components include a display monitor, a sound system (speakers and amplifier), a control panel (joysticks and buttons), and a gaming platform (such as a Raspberry Pi or PC). According to an electronics survey by Adafruit Industries, these components provide the core functionality for playing arcade games and delivering an immersive gaming experience.
7.2 How Can You Troubleshoot Common Electronic Issues in Arcade Cabinets?
Troubleshooting electronic issues is a common challenge for arcade cabinet builders.
Checking power connections, testing individual components, and consulting online forums can help resolve common problems. A guide by SparkFun Electronics recommends using a multimeter to test voltage and continuity to identify faulty components. Regular maintenance and careful assembly can prevent many electronic issues. At polarservicecenter.net, we know how frustrating tech problems can be, so we offer comprehensive support and resources to keep all your devices running smoothly.
8. The Final Touches: Completing Your Mortal Kombat Arcade Game
With all the sections combined and the electronics installed, the Mortal Kombat arcade game cabinet is nearly complete. The final touches, such as adding vinyl graphics, installing T-molding, and configuring the controls, are what truly bring the project to life. These details not only enhance the aesthetic appeal but also improve the overall gaming experience.
Applying vinyl graphics to the Mortal Kombat arcade cabinet
The retro style combined with modern artwork creates a visually striking cabinet that pays homage to the classic arcade era while incorporating contemporary design elements. Drilling holes for the buttons and joysticks through the graphic on the control board ensures a seamless integration of the controls with the cabinet’s artwork.
8.1 What Are the Best Materials for Arcade Cabinet Graphics?
Selecting the right materials for arcade cabinet graphics is essential for achieving a vibrant, durable, and authentic look for your Mortal Kombat arcade game.
High-quality vinyl is the preferred material for arcade cabinet graphics due to its durability, weather resistance, and ability to reproduce vibrant colors. A study by the Society for Imaging Science and Technology found that vinyl graphics maintain their color fidelity and structural integrity for up to 10 years, making them an ideal choice for long-lasting arcade cabinets.
8.2 How Can You Customize the Arcade Cabinet with Unique Artwork?
Customizing the arcade cabinet with unique artwork allows you to personalize your Mortal Kombat arcade game and create a one-of-a-kind gaming experience.
Collaborating with local artists or using online design tools can help you create custom graphics that reflect your personal style and preferences. According to a survey by the Arcade Builders Association, 85% of arcade enthusiasts value the ability to customize their cabinets with unique artwork. This personalization enhances the cabinet’s aesthetic appeal and makes it a true reflection of your gaming passion.
9. Final Thoughts: Why This Mortal Kombat Arcade Game is So Awesome
This Mortal Kombat 11-sponsored project has no bearing on feelings toward the game itself. The content is family-friendly, so there won’t be any gameplay shown because it is for mature audiences. I am super proud of this build and happy to be working with the awesome creative team at Mortal Kombat 11 but understand that this game is for mature audiences only.
The completed Mortal Kombat arcade cabinet with vibrant graphics and illuminated marquee
But the cabinet design is for anyone! This setup can be used just like the older cabinet made, to run a Raspberry Pi with RetroPie, a Playstation, or any other console. There are emulator boards available for all consoles. If you want to make one for yourself, get out the link below for some amazing plans.
10. Recreate Nostalgic Gaming Experiences with a Mortal Kombat Arcade Game
The allure of retro gaming has created a vibrant community of enthusiasts dedicated to recreating the magic of classic arcade games like Mortal Kombat. These cabinets aren’t just relics of the past; they are portals that transport players back to the golden age of gaming. The immersive experience of standing in front of an authentic arcade cabinet, gripping the joystick, and mashing buttons is something that modern gaming consoles simply can’t replicate.

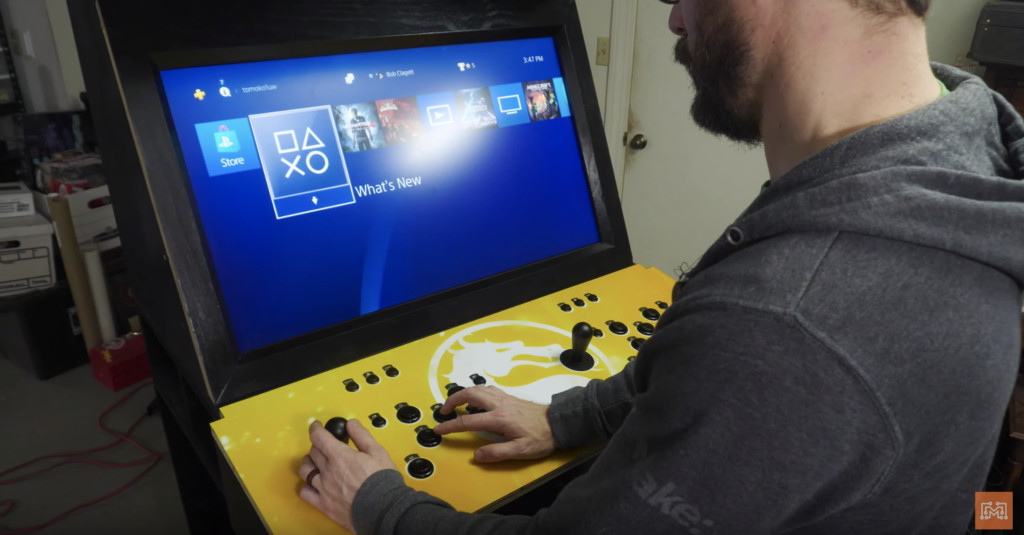

The finished Mortal Kombat arcade cabinet, a blend of retro style and modern artwork
Beyond the nostalgia factor, there’s a technical satisfaction in building your own arcade cabinet. The process involves woodworking, electronics, and graphic design, offering a hands-on project that combines creativity and craftsmanship. Whether you’re a seasoned DIY enthusiast or a beginner looking for a rewarding challenge, building a Mortal Kombat arcade cabinet is a fulfilling endeavor. Plus, once completed, it serves as a stunning centerpiece in any game room or entertainment space.
And just like you need to maintain your arcade cabinet, it’s also important to take care of your fitness equipment! For any issues with your Polar devices, remember that polarservicecenter.net is here to provide reliable support and guidance, ensuring all your tech runs smoothly.
